2002 Mustang Edge canister purge valve replacement helps fix rough idling, poor acceleration, and check engine light issues. The replacement is simple, involving basic tools and can be done in under an hour.
The 2002 Ford Mustang Edge is a fantastic vehicle, known for its stylish appearance and smooth driving experience. However, like any car, it requires regular maintenance to keep it running smoothly. One essential component of the vehicle’s emission system is the canister purge valve. This small but vital part ensures that your car runs efficiently and meets emission standards. If you’re experiencing problems like poor acceleration, rough idling, or a check engine light that just won’t go off, it might be time to replace the canister purge valve.
In this detailed guide, we’ll walk you through the entire process of replacing the canister purge valve in your 2002 Mustang Edge. We’ll discuss everything from symptoms of a faulty valve to the tools you’ll need, as well as a step-by-step replacement guide.
Contents
What is the Canister Purge Valve and Why Is It Important?

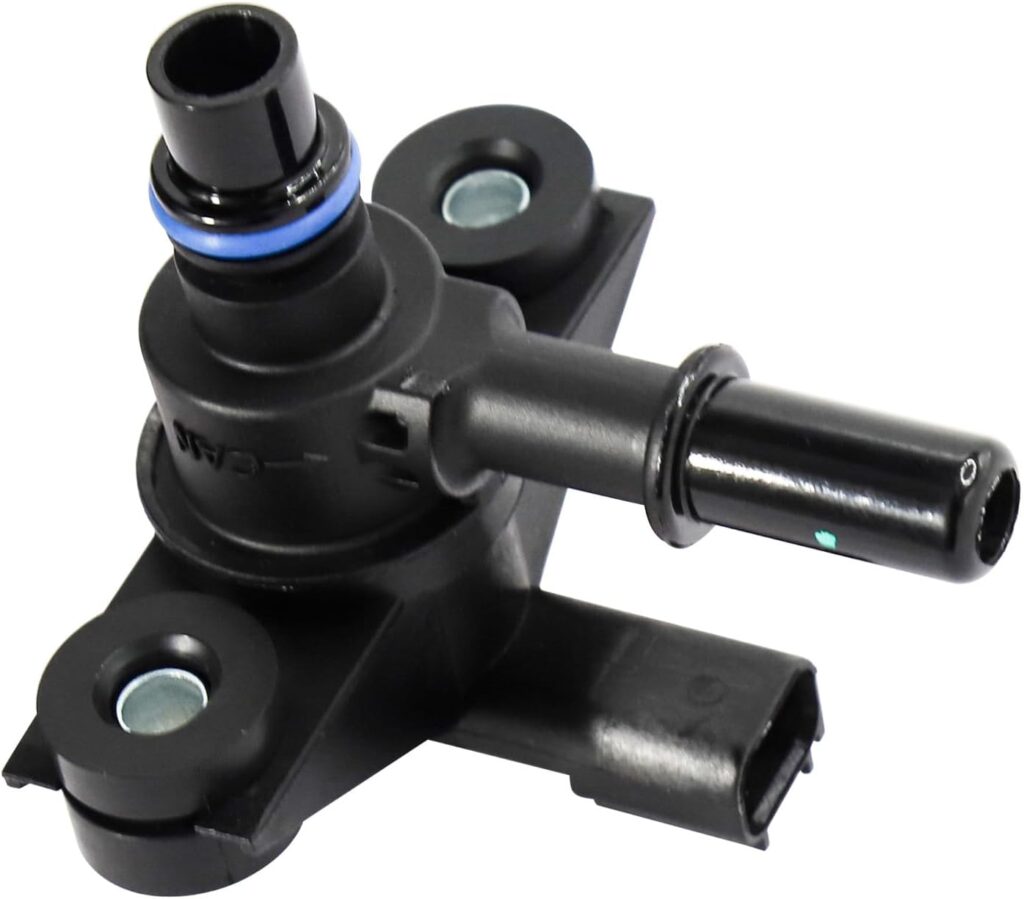

The canister purge valve is part of the car’s Evaporative Emission Control (EVAP) system. It plays a key role in controlling fuel vapors and preventing them from escaping into the atmosphere.
How Canister Purge Valve Works
when you fill up your gas tank, fuel vapors build up inside the tank. These vapors are stored in a charcoal canister. The canister purge valve regulates the release of these vapors into the intake manifold, where they are burned during combustion. This process not only helps reduce harmful emissions but also ensures that the engine operates efficiently. If the valve malfunctions, fuel vapors can leak, and you may notice issues with your vehicle’s performance or even fail an emissions test.
Common Symptoms of a Faulty Canister Purge Valve
Identifying the symptoms early can save you time and money. Some common signs include:
- Check Engine Light: A malfunctioning purge valve often triggers the check engine light. Error codes such as P0443 or P0455 are often associated with the EVAP system and can indicate a problem with the purge valve.
- Rough Idle: If the canister purge valve is stuck open or closed, it can cause an irregular idle. You may notice that the car idles roughly when stopped or at low speeds.
- Poor Acceleration: A clogged or malfunctioning purge valve can prevent the engine from getting the correct amount of fuel vapors, leading to sluggish acceleration.
- Failed Emissions Test: Since the purge valve controls emissions, a faulty valve can result in increased emissions and cause your car to fail an emissions test.
- Gas Smell: A bad purge valve can cause a gasoline smell due to vapor leaks. If you notice this odor, it’s important to inspect and replace the valve as soon as possible.
Tools and Materials You’ll Need for the Replacement
To replace the canister purge valve in your 2002 Mustang Edge, you’ll need the following tools and materials:
- Replacement Canister Purge Valve: Make sure to buy a compatible replacement valve for your 2002 Ford Mustang Edge. You can find these at your local auto parts store or order online.
- Socket Set: You’ll need a basic socket set with various sizes to remove bolts and fasteners.
- Screwdrivers: A flathead and Phillips screwdriver may be required for detaching vacuum hoses and electrical connectors.
- Penetrating Oil: In case any bolts are rusted or stuck, a penetrating oil like WD-40 can help loosen them.
- Gloves and Safety Glasses: Always prioritize safety when working with your vehicle. Wear gloves and safety glasses to protect yourself from dirt, debris, and chemicals.
- Diagnostic Scanner (Optional): If you have access to an OBD-II scanner, it can help clear any error codes after the replacement.
Step-by-Step Guide to Replacing the Canister Purge Valve
Replacing the canister purge valve in your 2002 Mustang Edge is a relatively straightforward process. Below is a detailed, step-by-step guide to help you through the process.
Step 1: Locate the Canister Purge Valve

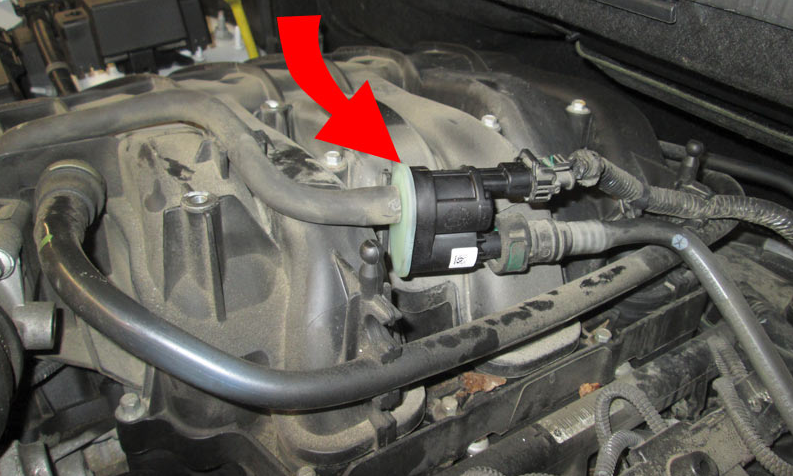

The first step in replacing the canister purge valve is locating it. On the 2002 Mustang Edge, the valve is typically located on the driver’s side of the engine bay. It is connected to the intake manifold and the charcoal canister by vacuum hoses.
If you have difficulty locating it, refer to your vehicle’s manual or search online for images of the location specific to your make and model. The purge valve is a small component and may be difficult to spot initially.
Step 2: Disconnect the Battery
For safety reasons, it’s always a good idea to disconnect the battery before working on your car. This will prevent any electrical issues or accidental short circuits. Use a wrench to remove the negative terminal from the battery.
Step 3: Remove the Old Purge Valve
Now that you’ve located the valve and disconnected the battery, you can begin removing the old canister purge valve.
- Disconnect the Electrical Connector: The purge valve has an electrical connector that needs to be unplugged. Simply press down on the tab and pull it off.
- Remove the Vacuum Hoses: The valve is connected to the charcoal canister and intake manifold via two vacuum hoses. Take note of how these hoses are attached so you can reconnect them to the new valve in the same manner.
- Unbolt the Valve: Use your socket set to remove the bolts or screws that hold the valve in place. These may be located at the top or sides of the valve. Keep these bolts as you’ll need them for the new valve.
- Take Out the Valve: Once the valve is unbolted and the hoses are disconnected, remove the old valve from its mounting bracket.
Step 4: Install the New Purge Valve
Once the old valve is removed, it’s time to install the new one. Here’s how to do it:
- Position the New Valve: Place the new purge valve in the same position as the old one. Ensure it fits securely in the mounting bracket.
- Reconnect the Vacuum Hoses: Attach the vacuum hoses to the new valve, making sure they’re connected to the correct ports. Refer to your manual or the old valve for reference.
- Bolt the Valve in Place: Using the bolts you removed earlier, secure the new purge valve into place. Tighten the bolts carefully to ensure the valve doesn’t move or become loose.
- Reconnect the Electrical Connector: Plug the electrical connector into the new valve, ensuring it snaps into place.
Step 5: Reconnect the Battery
Now that the new valve is installed, reconnect the negative terminal of the battery. Ensure the connection is tight and secure.
Step 6: Reset the Check Engine Light
If the check engine light was triggered by the faulty purge valve, it’s a good idea to reset it after the replacement. You can do this by using an OBD-II scanner or simply disconnecting the battery for about 10-15 minutes. If you don’t have a scanner, the light should eventually turn off on its own if the issue is resolved.
Step 7: Test the Vehicle
Once everything is reconnected, start the engine and allow it to idle for a few minutes. Check for smooth acceleration and ensure that the rough idle or other symptoms you experienced earlier are gone.
Estimated Costs
When planning to replace the canister purge valve on your 2002 Ford Mustang Edge, it’s essential to consider both the cost of the part and any labor charges if you opt for professional assistance. Below, we break down the typical costs you can expect for this repair.
- Replacement Canister Purge Valve: $30 – $100 (depending on the brand and quality).
- Labor Costs: If you choose to have a professional replace the valve, labor charges can range from $50 – $150, depending on your location and mechanic.
- Diagnostic Scan: Some auto parts stores offer free scanning services, while others charge between $30 – $50 for the scan.
Frequently Asked Questions
Here are some FAQs about canister purge valve replacement –
1. Can I drive with a bad canister purge valve?
It’s not advisable to drive with a faulty purge valve. A bad valve can lead to poor engine performance, increased emissions, and potentially cause further damage to the vehicle’s emission system.
2. How long does it take to replace the purge valve?
Replacing the canister purge valve usually takes about 30-60 minutes, depending on your experience and the tools you have on hand.
3. What happens if I don’t replace the purge valve?
If you don’t replace a malfunctioning purge valve, your vehicle may experience poor engine performance, rough idling, and may even fail an emissions test.
4. How can I know if my purge valve is bad?
Signs of a bad purge valve include the check engine light turning on, rough idling, poor acceleration, or a failed emissions test.
5. Is replacing the purge valve expensive?
Replacing the purge valve is generally an affordable repair. Parts cost between $30 and $100, and labor costs can vary depending on your location and mechanic.
Conclusion
Replacing the canister purge valve on your 2002 Ford Mustang Edge is a simple but important task that can help restore your vehicle’s performance and ensure it meets emission standards. By following this guide and using the correct tools, you can easily replace the valve yourself and save money on labor costs. Always remember to prioritize safety and consult your vehicle’s service manual for any specific instructions.
